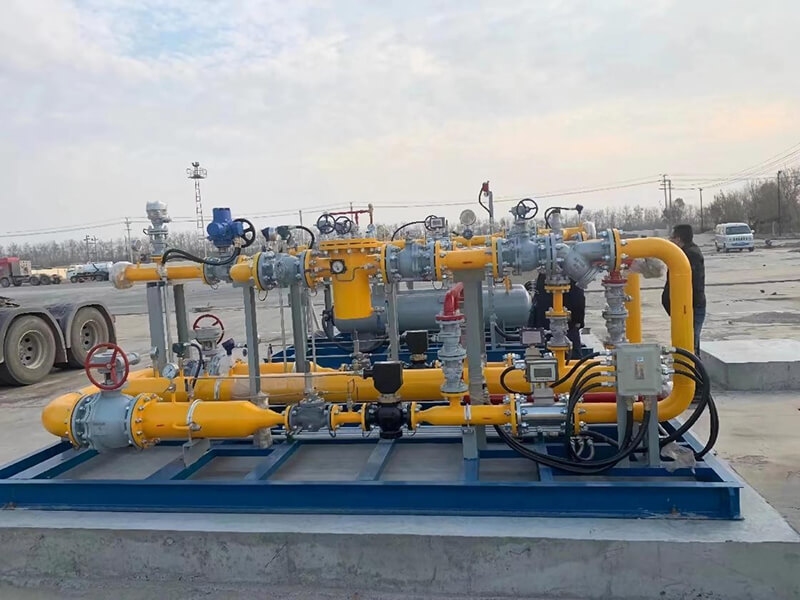

As the global move toward greener power picks up speed, many factories are switching to Compressed Natural Gas (CNG). It is a clean and efficient and low-carbon fuel. However, the primary engineering challenge for industrial users is the high operating pressure involved. CNG is stored and transported at up to 25 MPa. Standard factory machines simply cannot operate safely under such pressures. This makes the CNG Pressure Reducing Device a vital part of modern gas supply systems. At Okay Energy, we are a “Specialized and Sophisticated” SME and a National High-Tech Enterprise. We focus on “Forging Energy Solutions for Tomorrow.” Our team creates top-tier equipment and offers full EPC services. We provide smart gas supply setups that connect high-pressure CNG storage systems to stable industrial gas supply. This guide explains how our modular units change high-pressure gas into a smooth, steady flow while keeping workers safe.
Role of CNG Pressure Reducing Systems
Bridging High-Pressure Storage and Industrial Use
Natural gas is compressed to 25 MPa to increase storage density in CNG trailers. Our systems serve as the main link. They lower this pressure through several pressure regulation stages.
Protecting Downstream Equipment from Pressure Surges
Pressure inside a trailer changes as it gets empty. These changes can cause sudden pressure fluctuations. We build our CNG Pressure Reducing Device to mitigate pressure fluctuations. This ensures a continuous gas supply because of pressure instability.
How Does a CNG Pressure Reducing Device Work?

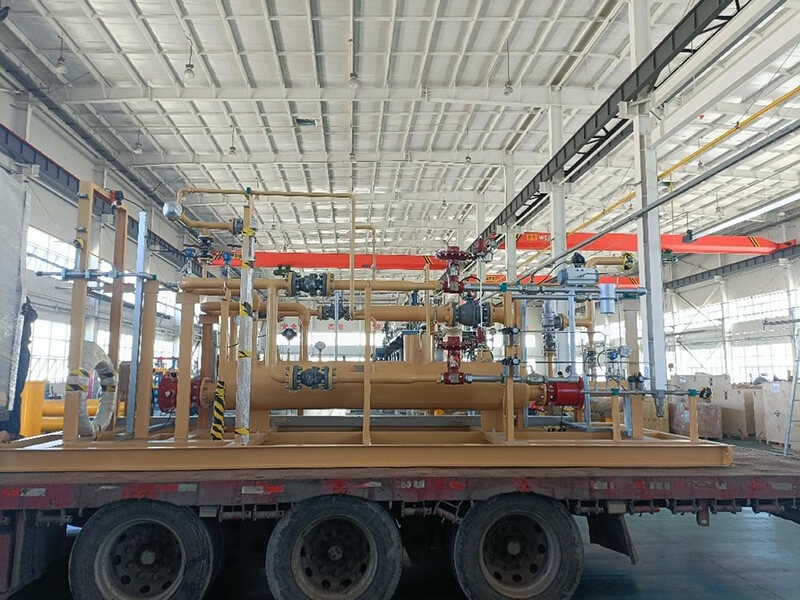

The Multi-Stage Gas Pressure Regulation Process
You cannot safely drop pressure from 25 MPa to a low level in a single pressure reduction stage. We use a step-by-step method. The gas travels through a series of Pressure Regulator & Shut-off Valve units. These parts lower the pressure through multiple pressure reduction stages. This keeps the flow rate very steady.
Proprietary Intelligent Pressure Domestication Technology
The pressure regulating system is designed to provide stable outlet pressure under varying operating conditions. This smart logic keeps the exit pressure very stable, within ±0.5%. It works even if the incoming pressure shifts by 30%.
Thermal Management and High-Pressure Expansion Control
When gas expands fast, gas temperature decreases significantly. This is known as the Joule-Thomson effect. To stop the hydrate formation, we add a heating stage. We use an indirect gas heater that may be installed before pressure reduction to compensate for the temperature drop caused by the Joule–Thomson effect.
Essential Components of the CNG Skid
Advanced Two-Stage Filtration and Preheating Systems
The gas must be cleaned before it is regulated. We use a Vertical Filter Separator or our Two-Stage Filtration System (Cyclone + Precision Filter). These remove particulate contaminants and liquid condensate. After cleaning, the gas goes to the vaporizer. It is preheated here to balance out the cold from the pressure drop.
High-Precision Pressure Regulator and Shut-off Valve Units
These parts are the core pressure regulation components. Our Pressure Regulator & Shut-off Valve units are built to be “Safe, Reliable & Efficient.” They provide fast response to pressure fluctuations.
Precision Metering with IoT-Enabled Monitoring
For accurate billing and tracking, we include high-quality meters. These include the Gas Turbine Flow Meter, Ultrasonic Flowmeter, or Mass Flowmeter. They work with a Pressure Transmitter and Temperature Transmitter to give accurate flow measurement in real time.
Rock-Solid Safety Architecture and Control
Triple-Layer Protection with Emergency Shutdown Systems
Our skids use a three-layer safety plan. The main part is the Automatic Emergency Shutdown (ESD) system. If something goes wrong, it shuts everything down in less than 2 seconds.
Advanced Leak Detection and Explosion-Proof Certification
We offer very sensitive leak sensors that detect gas leakage. All the electrical parts have Explosion-proof certification (ATEX/IECEx). This means they are safe for use in risky areas.
Real-Time Data Analytics via Industrial IoT
Our control boxes use Industrial IoT (Modbus/OPC UA) links. This allows for cloud tracking. The system can even support condition monitoring, so you know when to fix things.

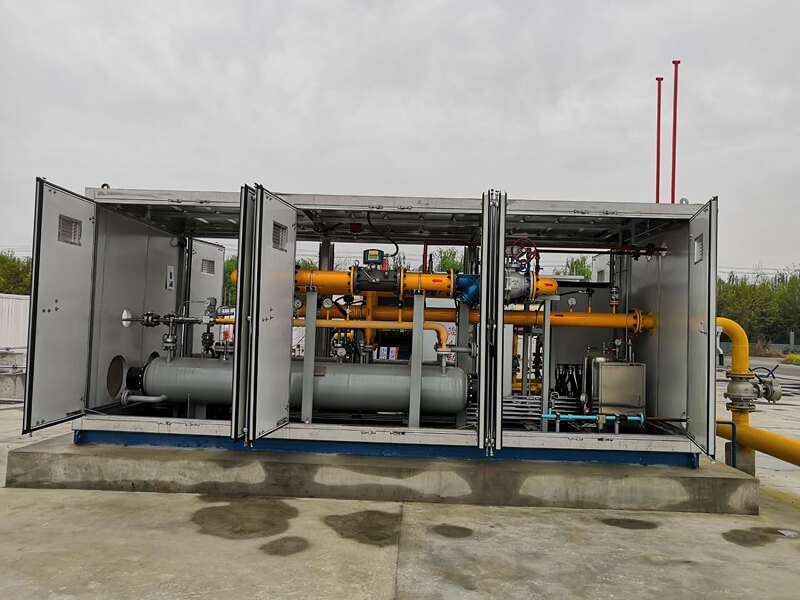

Advantages of Okay Energy Modular Design
Plug-and-Play Efficiency with Factory-Assembled Skids
Since our designs are modular, setup time is cut by 70%. We build and test the CNG Pressure Reducing Device in our own shop. Usually, it can start working within 48 hours after it arrives at your site.
Corrosion Resistance for Harsh Environmental Conditions
We use industrial-grade materials, like SS316L vessels. This ensures the equipment provides long-term operational reliability in “Tough Environmental Conditions.”
Industrial Applications for CNG Solutions
Powering Boilers and Large-Scale Industrial Parks
In places without gas pipelines, our skids act as a “Virtual Pipeline.” For example, our Malaysia CNG Pressure Regulating & Gas Supply Station Project used a 3500Nm³/h Skid-mounted System to provide a stable gas supply for industrial production.
Reliable Supply for Remote Off-Grid Power Plants
We help ensure reliable fuel supply in remote areas by providing steady gas flow. Whether it is for starting a turbine or running the whole plant, our CNG Pressure Reducing Device keeps the output at 0.8-1.2 MPa, even when demand is at its highest.
Conclusion
A high-performance CNG Pressure Reducing Device is a complex mix of filters, valves, and safety equipment. All these parts must work together perfectly. At Okay Energy, we have spent 15 years innovating. We offer modular, skid-based equipment that lowers your costs and keeps your plant running.
Do you want to improve your factory gas supply? Reach out to Okay Energy today for a technical plan and a price quote on our best CNG pressure reducing tools!
FAQ
Q: How does a CNG pressure reducing device work?
A: A CNG Pressure Reducing Device takes high-pressure gas (up to 25 MPa) from a CNG trailer and lowers it in stages. First, it cleans the gas with a Two-Stage Filtration System. Then, it warms it up using an Electric Water Bath Vaporizer. Finally, a Pressure Regulator & Shut-off Valve brings the pressure down to the level you need.
Q: What are the main components of a CNG pressure reducing skid?
A: The key parts are a Vertical Filter Separator, a heater like a Steam Heated Vaporizer, and a Pressure Regulator & Shut-off Valve. It also has meters like a Gas Turbine Flow Meter or Ultrasonic Flowmeter. Everything is built into one factory-assembled skid.
Q: What safety features should I look for in an industrial CNG station?
A: You should look for Triple-layer protection and an Automatic Emergency Shutdown (ESD) that works in under 2 seconds. Also, make sure the unit has good leak sensors and is made from strong materials like SS316L to prevent rust and damage.
