In the complex layout of a thermal power plant, the ignition system plays a critical role in initiating the combustion process during plant startup. A steady fuel gas supply is essential for consistent performance. In areas where natural gas supply is limited, LPG is often used as a startup fuel or backup fuel source. Conventional LPG vaporization methods frequently face pressure swings and partial vaporization, which can cause shutdowns during peak operation. Okay Energy, a National High-Tech Enterprise and supplier of industrial gas equipment, tackles these issues with its electric water bath LPG vaporizer. The unit delivers a stable and consistently vaporized gas supply to the ignition system under varying site conditions.
Challenges of Power Plant Ignition Gas Supply
Risks of Unstable Gasification and System Failure
Power plant burner ignition systems need an immediate and steady gas flow. Any interruption in gas supply can delay or stop the startup process. Older vaporizer systems often struggle to maintain stable thermal performance. When the LPG vaporization system runs unevenly, liquid carryover can occur. Liquid LPG entering the gas header may cause unstable flames, uneven burner operation, or damage to ignition hardware. Okay Energy designs its units to achieve complete LPG vaporization before downstream delivery, keeping liquid out of the downstream piping.
Problems with Traditional High-Load Fuel Supply
At high load, gas demand may increase significantly during startup and peak-load conditions. Older LPG setups struggle to match this rate, leading to pressure drops. These pressure fluctuations can disrupt the required air-fuel ratio needed for reliable ignition and can trigger failed starts. Many legacy systems also lack real-time monitoring. Okay Energy builds its LPG vaporizer station with integrated pressure regulation that holds steady across load changes.
Why Electric Water Bath LPG Vaporizers Outperform Alternatives
Ensuring Uniform Heating for Complete Vaporization

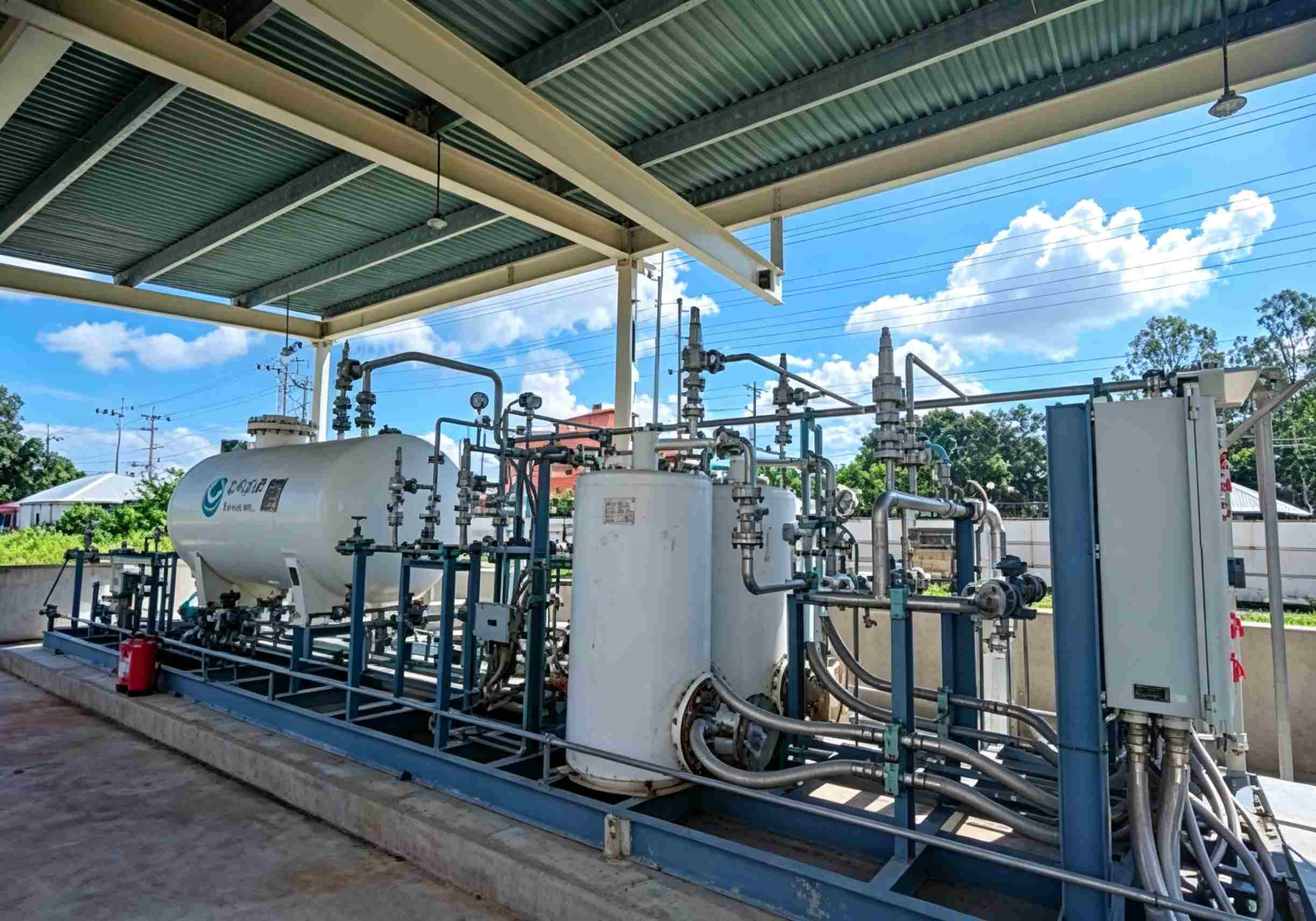

The electric water bath LPG vaporizer keeps water at a fixed temperature with an electric heater. LPG flows through a heat exchanger coil placed in the bath. Heat transfer stays uniform, so the liquid reaches full vaporization before it leaves the unit. This approach significantly reduces the risk of liquid carryover into the ignition headers and supports the high thermal efficiency required by plant standards.
Advanced Pressure Control for Stable Gas Output
Pressure stability is equally important for reliable burner operation. Okay Energy adds a Stable Pressure Regulating System to each vaporizer. In power plant service, the system is designed to maintain an outlet pressure around 0.8 MPa. Pressure and temperature transmitters feed data to the control loop, allowing the system to adjust quickly when demand changes. The result is gas delivered at the exact conditions the burners require.
Benefits of Integrated Skid-Mounted LPG Station Designs
Skid-Mounted LPG Vaporizer Systems for Fast Power Plant Deployment
Overseas projects often run on tight schedules. Okay Energy supplies an Integrated Skid-Mounted LPG Vaporizer Station that combines the vaporizer, pressure regulation, safety devices, and PLC control cabinet on one frame. Most assembly and testing occur at the Tianjin factory before shipment. On-site work is limited to flange connections, reducing installation time and labor costs at remote sites.
Lower Installation and Maintenance Costs with Skid-Mounted LPG Stations
The compact skid layout lowers installed cost. Traditional site-built systems require extensive piping and local skilled crews. With the skid-mounted LPG station, the footprint stays small and maintenance access is straightforward. A Vertical Filter Separator and Two-Stage Filtration System remove particulates before they reach sensitive components, extending equipment life.
Success Case: Okay Energy Solutions in Bangladesh
Technical Parameters of the Bangladesh Ignition Project

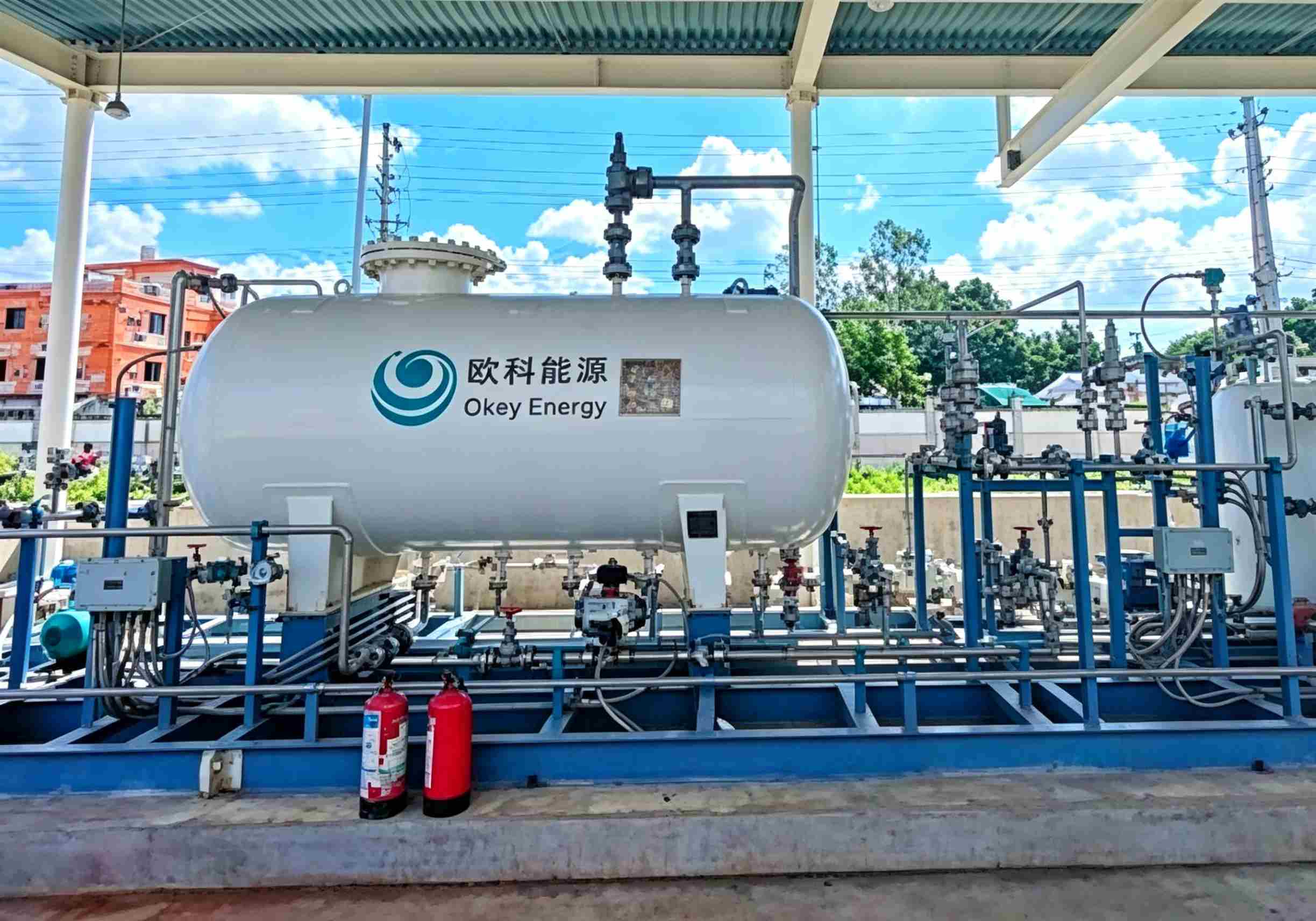

This Bangladesh project is an example of how such systems function in practical applications. In fact, there was a need for a constant ignition gas supply amidst fast-growing power infrastructure. Okay Energy supplied a 400 Nm³/h LPG vaporizer station operating at 0.8 MPa.
Achieving Reliable Ignition Success Rates
Prior to the installation, maintaining stable vaporized gas supply was a key operational requirement. After the startup of the Okay Energy unit, gas flow remained continuous and free of liquid carryover. The project helped provide a more stable gas supply for ignition operations and supported reliable plant startup performance. The plant achieved more stable ignition performance and improved operational continuity.
Versatile Applications for Industrial LPG Vaporization Systems
Power Plant Backup and Boiler Fuel Systems
Beyond ignition duty, the same LPG vaporizers support backup fuel service. When the main gas supply drops, the LPG vaporization and pressure regulating station switches in to feed boilers and furnaces. For higher-pressure needs, Tube Bundle Vaporizers rated to 6.0 MPa are available. Steel mills, ceramic plants, and large power stations all use these units to avoid production stops caused by fuel interruptions.
Solving Natural Gas Shortages in Developing Regions
SNG plants represent a viable solution for areas that continue to develop their pipeline infrastructure. The LPG-Air SNG Delivery Solution involves mixing LPG with air in order to create a gas with the same characteristics as natural gas, which allows many existing burners to operate with minimal modification. There are currently over 100 installations utilizing the system in the Middle East and Southeast Asia.
Conclusion
Even small interruptions in the supply of the ignition gas result in problems, which might include high costs and safety issues. Okay Energy has proven, by means of installations in both Bangladesh and Saudi Arabia, that electric water bath LPG vaporizer systems, in combination with a skid-mounted design and PLC control systems, provide reliable functionality. Okay Energy has been around for more than 15 years and operates successfully in more than 30 different countries.
Contact Okay Energy today to review your power plant gas supply needs and discuss suitable LPG vaporizer options.
FAQ
Q: What are the main benefits of using an LPG vaporizer in a power plant?
A: An LPG vaporizer converts liquid LPG into a stable gas stream before it reaches the burners. This step prevents liquid carryover and pressure swings that often cause ignition failure. Consistent gas delivery improves combustion efficiency and cuts unplanned downtime.
Q: How does an electric water bath LPG vaporizer work?
A: An electric heater maintains water temperature in a tank. Liquid LPG passes through a submerged heat exchanger and absorbs heat evenly, achieving full vaporization. The system holds stable outlet pressure, for example, 0.8 MPa, and includes multiple temperature and pressure safeguards.
Q: What size LPG vaporizer is required for a power plant?
A: The required LPG vaporizer capacity depends on the plant’s fuel consumption rate, operating pressure, startup requirements, and peak gas demand. Small ignition systems may require only a few dozen Nm³/h, while large power plants often need several hundred Nm³/h or more. Factors such as ambient temperature, LPG composition, and future capacity expansion should also be considered during system design. A properly sized LPG vaporizer helps maintain stable gas supply and reliable ignition performance under varying operating conditions.
