Understanding Modular Skid-Mounted Equipment
What Is Modular Skid-Mounted Equipment

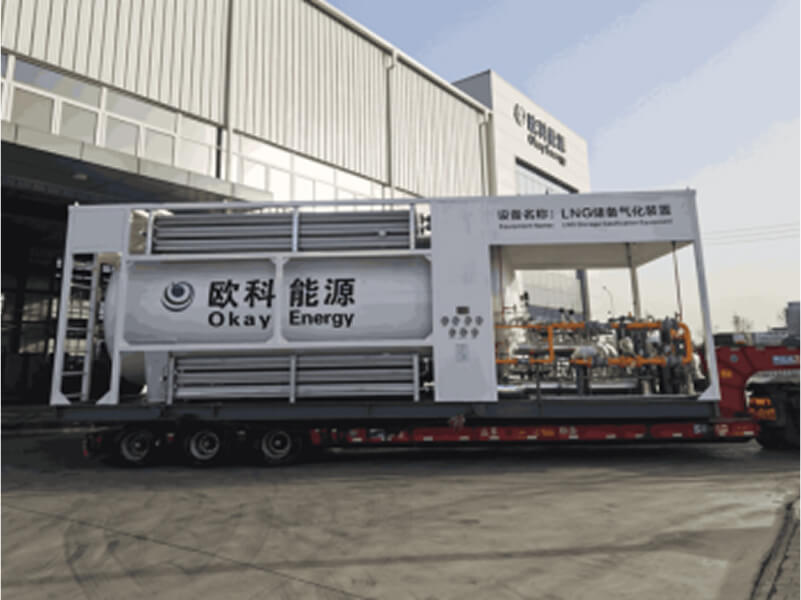

Modular skid-mounted equipment is a name given to pre-engineered, self-contained, steel-frame, or skid-mounted systems. The systems are designed for plug-and-play installation with little on-site assembly needs. They are widely utilized in gas processing, power generation, and industrial processes due to the fact that they are portable, have a small footprint, and are simple to integrate with installed systems. They offer an easy way of mounting complex processing units such as vaporizers, pressure regulating stations, and gas mixing modules. As they are pre-fabricated off-site, they save both cost and installation time significantly with guaranteed quality control.
Advantages of Modular Skid-Mounted Systems
- Saving in Installation Time: Pre-fabricated modules reduce on-site construction time by up to 80% compared to traditional stick-built methods.
- Cost Certainty: Factory-controlled construction minimizes field cost surprises and change orders.
- Better Quality Control: Standardized processes in controlled environments mean consistent quality.
- Space Optimization: Compact designs mean maximum processing capacity in small footprints.
- Scalability: Modular design allows for phased expansion and system upgrade capability.
- Enhanced Safety: Reduced field labor hours and pre-tested systems enhance overall project safety.
Okay Energy’s Complete Solutions
Okay Energy Technology provides complete modular skid-mounted systems, such as:

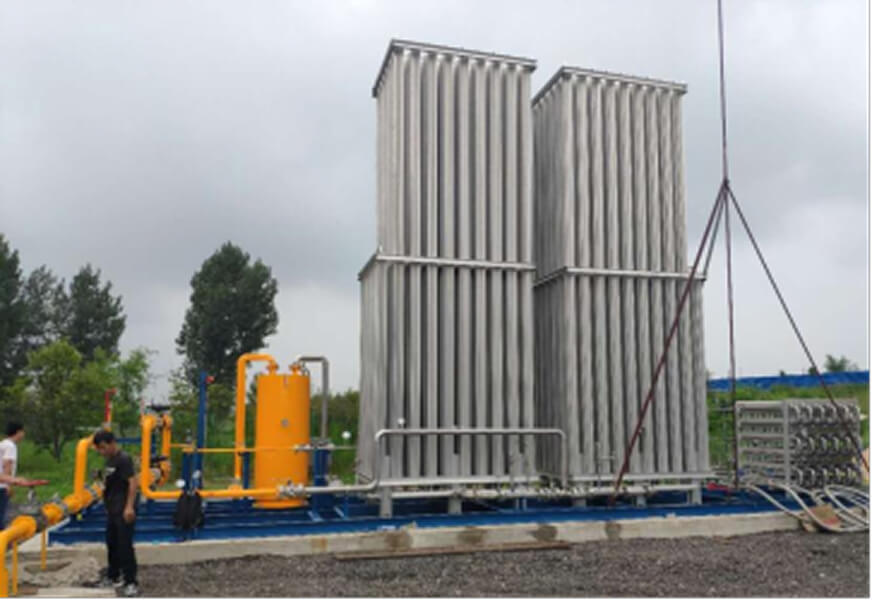

- LNG Vaporizing (Gasification) Skids.

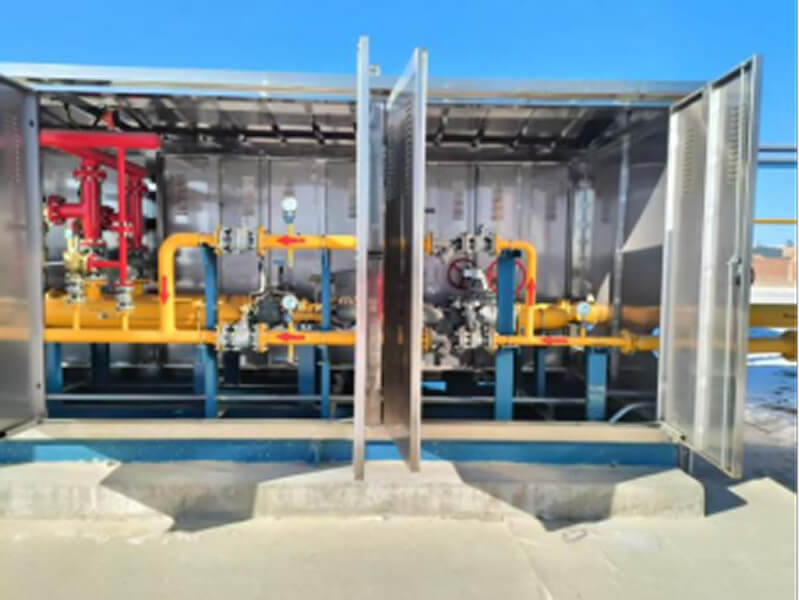

- Natural Gas Pressure Regulation & Metering Systems.
- LPG Vaporization (Gasification) Units.
- CNG Pressure Reducing Stations.
- Mine Gas Treatment Systems.
- Industrial Gas Blending and Calorific Value Control Systems.
- Cryogenic Gas Vaporization Units.
All systems feature the latest components and automation controls and undergo full testing before delivery to ensure reliability in all operating conditions.
The 5-Step Selection Framework for Modular Skid Equipment
Step 1: Define Your Project Requirements
Flow Rate Capacity
- Calculate minimum, maximum, and average flow rates.
- Compensate for seasonal fluctuations and demand fluctuations.
- Provide for future growth needs (+20-30% minimum recommended).
Pressure Requirements
- Calculate inlet pressure ranges and potential fluctuations.
- Calculate required outlet pressure stability tolerances.
- Compensate for pressure drop limitations through the system.
Temperature Parameters
- Calculate process fluid inlet temperatures.
- Calculate required outlet temperatures.
- Calculate the ambient temperature operating ranges.
Media Characteristics and Application Matching
| Media Type | Key Considerations | Okay Energy Solutions |
| LNG/LPG | Cryogenic materials, vaporization rates, safety systems | LNG Vaporizing Skids, LPG Gasification Units |
| Natural Gas | Pressure regulation, odorization, composition variation | Natural Gas Pressure Regulation & Metering Skids |
| Specialty Gases | Precision blending, contamination control | Gas Blending & Calorific Value Control Systems |
| Mine Gas | Contaminant removal, variable composition | Mine Gas Treatment Systems |
Step 2: Assess Site and Environmental Conditions
Space Optimization
- Maximum dimensional limitations for transportation.
- Maintenance access and requirements.
- Weight distribution and structural support requirements.
- Integration with adjacent piping and infrastructure.
Environmental Conditions
- Temperature extremes and seasonal variations.
- Humidity levels and precipitation.
- Wind loading requirements and seismic design.
- Corrosion protection requirements.
Utility Availability
- Electrical power quality and availability.
- Instrument air quantity and quality requirements.
- Cooling water quality and availability considerations.
- Fuel gas availability for heating.
Step 3: Achieve Regulatory Compliance and Safety
International Standards
- Pressure equipment directives (PED, ASME, GB standards).
- Safety system requirements (SIL ratings).
- Environmental emission regulations.
- Electrical classification requirements.
Safety Integration
- Pressure relief and safety valve requirements.
- Emergency shutdown and gas detection systems.
- Fire protection and suppression systems.
- Maintenance access for critical items.
Okay Energy systems are delivered with complete documentation packages and technical support to help address regulatory submissions and approvals.
Step 4: Determine Budget and Timeline Considerations
Total Cost of Ownership Analysis
| Cost Component | Traditional Construction | Modular Skid Approach | Savings |
| Design & Engineering | 12-16 weeks | 4-6 weeks | 60-70% |
| Installation Labor | High variable costs | Fixed manufacturing costs | 30-50% |
| Site Work | Extended duration | Parallel processing | 20-40% |
| Commissioning | 2-4 weeks | 1-2 weeks | 50% |
Step 5: Select the Right Partner and Customization Alternatives
Engineering Expertise Evaluation
- Review the vendor’s project experience with similar applications.
- Evaluate technical support capability.
- Assess customization and engineering flexibility.
- Check references and success stories of projects.
Customization Capabilities
- Process-Specific Adaptations: Hybrid system designs, specialty materials.
- Site-Specific Modifications: Dimensional modifications, weather protection.
- Control System Integration: Communications protocols, SCADA interfaces.
- Future Expansion Planning: Design for increased capacity or function.
Modular vs. Traditional Construction: Quick Comparison
| Factor | Traditional Construction | Modular Skid Approach |
| Project Timeline | 6-12 months | 3-6 months |
| Cost Predictability | Low (frequent changes) | High (fixed price) |
| Quality Control | Variable (site conditions) | Consistent (factory) |
| Safety | Higher field risk | Lower field risk |
| Flexibility | Difficult to modify | Easy to expand/upgrade |
| Site Work | Extensive | Minimal |
Why Choose Okay Energy as Your Partner?
Okay Energy provides extensive experience in gas processing technology with particular emphasis on cryogenic process design, pressure management, and automation integration. Our teamwork approach includes:
Engineering Excellence
- Technical Expertise: decades of experience in gas processing technology.
- Innovation Focus: ongoing R&D with the newest technological advancements.
- Quality Assurance: ISO 9001 certified manufacturing processes.
Full Support
- Design Phase: FEED support, 3D modeling, value engineering studies.
- Execution Phase: factory acceptance testing, installation supervision.
- Operational Support: preventive maintenance, technical support, spare parts.
Global Experience
- Successful installations worldwide by industry and geography.
- Flexibility to conform to local requirements while meeting global standards.
- Established record of tough applications and specifications.
FAQ
Q: What is the typical lead time on modular skid equipment?
A: Standard modules typically produce in 4-6 weeks, and custom solutions 8-12 weeks or more, based on complexity. Early involvement maximizes the schedule.
Q: How do you manage quality and performance?
A: We implement rigorous quality control measures like factory acceptance testing, third-party inspection, and performance testing to ensure conformity to specification.
Q: Can modular skids be upgraded or expanded in the future?
A: One of the greatest advantages of modular design is the ability to add functionality or capacity by adding more skids or system upgrades.
Q: What kind of documentation do you provide for regulatory compliance?
A: We provide full documentation packages such as design calculations, material certifications, test reports, and compliance matrices to assist with regulatory submissions.
