Control of calorific value is the lifeblood of efficient, economical, and safe distribution of gas. Sustaining balanced energy content in the gas assures the best combustion, safeguards equipment, conforms to regulations, and ensures accurate energy metering. Both industrial and domestic consumers, variations in calorific value give rise to inefficiency, hazards to safety, and financial loss.
What is Calorific Value?
The calorific value defines the quantity of liberated energy when a specified gas volume is burned, typically in megajoules per cubic meter of gas (MJ/m³) or British thermal units (BTU). It’s a valuable parameter for gas distributors since it directly influences the delivery performance of energy.
The Risk of Variations of Calorific Value
By precise regulation of calorific value, the gas distributors provide reliability, economy, and security of the networks.
Impact on Combustion Efficiency
Conversions of calorific value impact the efficient and complete combustion of a gas. Less than projected energy content results in less complete combustion, longer combustion of fuels, and increased emissions. Overly high results can lead to overheating and blower or turbine damage.
Risks to Equipment and Infrastructure
Gas appliances are designed to operate within specific calorific ranges. Fluctuations can result in overpressure or underperformance, potentially damaging sensitive components like heat exchangers or turbines. In industrial settings, this could halt production lines or reduce product quality.
Safety Hazard Due to Inconsistent Fuel Quality
Safety is paramount in any gas distribution system. Inconsistent calorific values can lead to flame instability or flashbacks in burners, increasing the risk of fire or explosion. Automated monitoring systems are vital to detect anomalies before they escalate into hazards.
Regulatory and Compliance Obligations
National Pipeline Standards for Gas
Governments dictate strict regulations for the calorific value and composition of pipeline gas. The rules are enforced to enable reasonable pricing and ensure structural integrity. For instance, China’s national standard for blending systems of hydrogen-natural gas dictates detailed limits for hydrogen volume fractions.
Legal Consequences of Non-Compliance
Noncompliance with such laws may be met with criminal actions, fines, or revocation of operating licenses. It also exposes a company to liability should accidents or loss of a third-party’s property be brought on by variations in the quality of gas.
Economic and Trade Implications
Energy-Based Billing and Reasonable Rates
Energy-based billing depends on accurate measurement of calorific value, so customers are charged fairly based on energy consumed rather than volume alone. Real-time monitoring systems help utilities maintain transparency and trust with their clients.
Minimizing Operations Expenses through Effectiveness
Stable calorific values help operators to optimize combustion processes for reduced waste of fuels and reduced expenditure for operations. This is important, particularly for large-scale applications like steel mills or power plants, where small inefficiencies translate to a big loss of money.
Okay Energy’s Exact Control Solutions
Online Monitoring Technologies from Okay Energy
Okay Energy creates sophisticated solutions specifically for calorific value regulation and industrial blending of gases. We can provide a Calorific Value Control System for various gases such as LPG, natural gas, air, coke oven gas, blast furnace gas, converter gas, producer gas, and coalbed methane. The systems consist of real-time information gathering with the aid of sensor networks and also PLCs to facilitate setting on a real-time basis.
Mixing Systems to Change the Gas Mixture
Our Blending System for Natural Gas-Hydrogen enables dynamic variation of the hydrogen levels within 10% to 90%, and it blends to ±1% accuracy—a match made for test platforms like Tsinghua University’s. This adjustability enables operators to vary fuel qualities on a fine, discrete scale as a function of seasonal changes in demand or changes in supply.
Suitability for Current Distribution Systems

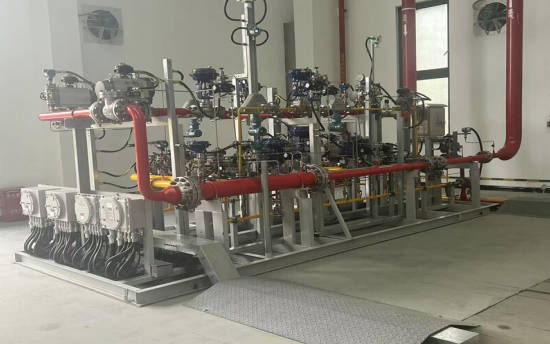

Our equipment is delivered as a complete skid-mounted unit, allowing for rapid installation upon arrival at the site. While quick-connect piping is provided, the flange size is not fixed. Instead, the connection flange is customized according to the customer’s on-site pipeline specifications. This ensures smooth integration with existing infrastructure and minimizes installation downtime.
Advantages of Utilizing Okay Energy Systems
Enhancing Public Safety with Data in Real-Time
Our systems are constantly watching important parameters such as flow rate, pressure, temperature, and composition. We can set alerts using our PLC control interface for quick action if any parameter crosses predefined thresholds—reducing safety hazards on a proactive basis.
Supporting Regulatory Compliance Effortlessly
Through single design thinking wherein filtering components, regulators, metering instruments, and mixers are all housed within skid-mounted enclosures, our clients achieve compliance without cumbersome retrofitting efforts.
Improving System Efficiency and Reliability
Through the control of fuel quality by automatic variation of flow-proportional mixing methods in real time—as in our case of Calorific Value Control implemented for Shanxi Gas Group Limited—the dependability of the overall system rises to a great extent even for high flow rates of 210000Nm³/h.
Capturing Maximum Economic Value for Distributors
Non-compliance results in less penalty for distributors, coupled with high customer satisfaction through reliable service delivery, all of which factor well towards revenue assurance.

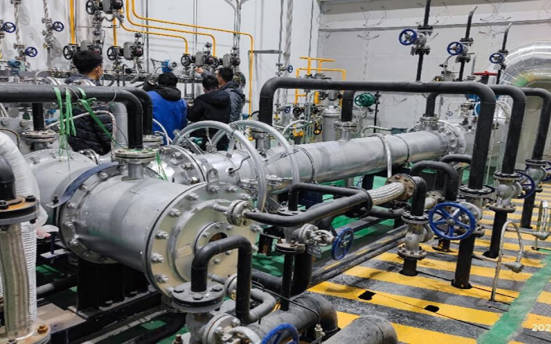

Ease of Installation and Maintenance
All panels are fully test-assembled at the factory before delivery to ensure plug-and-play operation on delivery to the site. Use of standard components facilitates straightforward maintenance procedures and low stocks of spare parts.
Future Directions for Dealing with Calorific Value
Digitalization and Integration of Smart Grids
As smart grids develop worldwide across both electricity and natural gas industries alike, digital integration comes to the fore. Our PLC-based architecture accommodates Modbus communication protocol, supporting remote diagnostics & cloud-based analytics integration wherever necessary.
The Contribution of AI and Automation to Gas Quality Control
Predictive maintenance and adaptive control schemes built on a history of performance patterns will be an ever-increasing function of Artificial Intelligence—a future we are already shaping through collaborations such as our collaborative effort with Tsinghua University on the technology of hydrogen blending.
FAQ
Q: Why is controlling calorific value important for gas distribution?
A: Calibration of calorific value is needed for gas distribution. Correct calorific value regulation allows for a safe combustion, protects plant and machinery, meets regulations, and ensures metering of correct energy.
Q: How do differences in calorific value affect industrial processes?
A: In Synthetic Natural Gas (SNG) production, calorific value control is essential. SNG is made by blending LPG with air—whose composition can vary—using venturi or follower-type flow systems depending on pressure. The gas volumes are precisely adjusted to stay outside explosive limits, and instruments, valves, and automation systems ensure stable and safe operation.
Q: What kind of gases are Okay Energy’s systems capable of handling?
A: Okay Energy favors natural gas, LPG, air, nitrogen, coal bed methane (CBM), blast furnace gas (BFG), coke oven gas (COG), and others as per application requirements.
Q: Are existing gas pipes amenable to integration with Okay Energy systems?
A: Yes, quick-connect piping and modularity give hitch-free integration with no costly retrofits, minimum downtime, and low initial costs.
Q: How reliable is the gas blending process on Okay Energy systems?
A: Mixing accuracy up to ±1% with 99% uniformity, suitable for delicate applications, including test runs on a turbine or on a pilot research facility.
