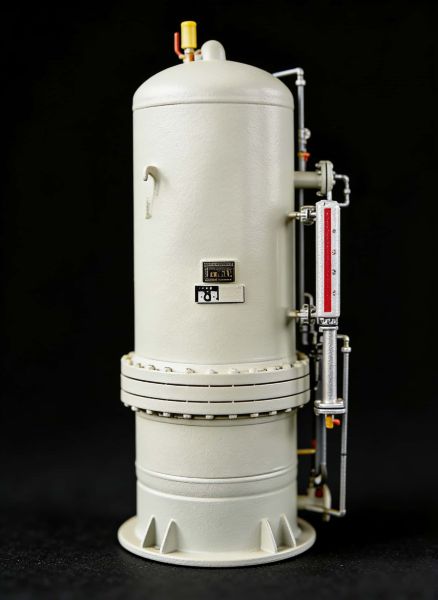

Water Bath Vaporizer

The Liquid Gas Hot Water Vaporizer ensures stable vaporization and superheating of liquefied gases using a circulating hot water system. Inside the vaporizer, liquefied gas absorbs heat from stainless steel tube bundles, fully vaporizes, and passes through the built-in gas-liquid separator to remove heavy fractions before entering the pipeline.

Hot Water Supply System: Circulating hot water is provided by an external boiler, pump, and elevated water tank, controlled automatically within user-defined temperature ranges. For safety, the vaporizer is equipped with a pressure relief valve that activates if internal pressure exceeds the set limit.

Technical Specifications:

• Vaporization Capacity: 0.5–20 T/h

• Heat Source: Circulating hot water

• Power Supply: 220 VAC (vaporizer), 380V/50Hz (pump)

• Heat Exchanger: Tube bundle (customizable for different media), design pressure 1.8 MPa

• Safety Valve Release Pressure: 1.76 MPa

Key Features:

• Efficient and optimized heat transfer design

• Large heat exchange area ensures full vaporization and prevents coking

• Automatic temperature control for safe operation

• Multiple safety interlocks to prevent overfilling or overpressure

• Widely applicable for LPG, LNG, LN₂, NH₃, CO₂, and other gases

Optional Configurations:

• Non-explosion-proof or explosion-proof control panel

• Adjustable inlet/outlet valves, liquid level transmitters

• Intelligent control system for precise operation

Why Choose This Vaporizer:

• Reliable performance even in harsh environments

• Reduced maintenance costs due to efficient, indirect heating

• High safety standards with multiple interlocks and automatic controls

• Customizable design to meet different industrial requirements
