The global shift toward cleaner energy has significantly increased the demand for safe and efficient natural gas supply systems. However, one of the major challenges industries face is handling high-pressure CNG from storage cascades or tube trailers. Directly supplying high-pressure CNG to downstream equipment without proper pressure regulation may cause equipment damage and operational safety risks. To address these challenges, Okay Energy has developed engineered CNG Pressure Regulating Skid solutions designed to deliver stable, safe, and intelligent pressure control for industrial gas distribution.
Okay Energy Group, headquartered in Tianjin, China, is a National High-Tech Enterprise specializing in the research, design, manufacturing, and EPC delivery of modular skid-mounted systems and industrial gas solutions. In this article, we will explore what a CNG Pressure Regulating Skid is, its components, working principle, and its wide range of industrial applications.
What Is a CNG Pressure Regulating Skid and Why Is It Used?
Definition and Purpose
A CNG Pressure Regulating Skid is a modular system engineered to depressurize and regulate high-pressure CNG, which can reach pressures up to 25 MPa—to a controlled pressure suitable for downstream consumption. It ensures that natural gas from storage or transport sources is delivered at a consistent pressure and flow rate to end users such as industrial boilers, gas engines, turbines, and manufacturing processes.
According to Okay Energy’s product description, “Our skids transform high-pressure natural gas (up to 25Mpa) into stable, controllable flow – making clean energy accessible anywhere.” The primary purpose of this system is to maintain operational safety while optimizing performance efficiency across diverse industrial processes.
Why Direct Use of High-Pressure CNG Is Unsafe
Using high-pressure CNG directly can cause catastrophic failures due to overpressure conditions. Risks include pipeline rupture, equipment damage, or even explosions caused by uncontrolled pressure surges. By reducing pressure in multiple stages, the skid protects downstream systems and personnel from potential harm.
Okay Energy’s design minimizes these risks through its “Intelligent Pressure Domestication™” technology that maintains stable outlet pressure under varying inlet pressure conditions. This precision regulation prevents dangerous spikes while ensuring continuous operation.
Key Components of an Industrial CNG Pressure Regulating Skid System
Pressure Regulation System
At the heart of every skid lies its pressure reduction mechanism. Multi-stage regulators gradually decrease inlet pressure to achieve stable output without sudden drops or surges.

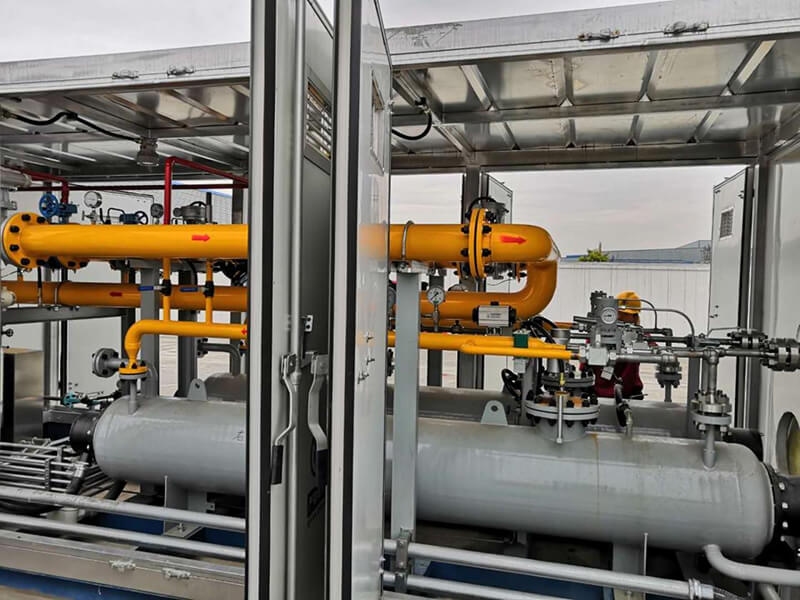

The Okay Energy CNG Pressure Reducing Device features proprietary multi-stage regulation technology that ensures consistent output even under varying inlet conditions. This guarantees precise control across all operational phases.
Valve System
The valve assembly includes shut-off valves for isolation during maintenance, relief valves for overpressure protection, and control valves for fine-tuning flow rates.
Each Okay Energy skid incorporates SS316L vessels and Inconel valves offering 25-year corrosion resistance. These materials ensure long-term reliability in harsh operating environments.
Filtration System
Filtration serves as the first line of defense against contaminants such as dust or oil residues that could harm sensitive equipment downstream. Typically equipped with dual-stage filters—cyclone separators followed by precision filters—the system guarantees clean gas delivery for optimal performance.
Safety Protection Devices
Safety mechanisms are integral to every Okay Energy design. The skids include automatic emergency shutdown (ESD) systems that provide rapid emergency shutdown response when abnormal operating conditions are detected. Additional layers such as burst discs and relief valves provide redundancy against overpressure events.
The Rock-Solid Safety Architecture integrates blockchain-enabled leak detection with sensitivity up to 5 ppm and explosion-proof certification (ATEX/IECEx).
PLC Control System
Automation enhances both safety and efficiency through programmable logic controller (PLC) integration. The PLC continuously monitors inlet/outlet pressures, temperature variations, and valve positions while automatically adjusting parameters for stability.
Okay Energy’s skids feature Industrial IoT connectivity (Modbus/OPC UA), enabling real-time cloud-based analytics and remote management.
How Does a CNG Pressure Regulating Skid Work Step by Step?
The Step-by-Step Regulation Process
The process begins with high-pressure gas entering through an inlet manifold, where it passes through filters removing solid or liquid impurities. Next comes multi-stage pressure reduction using precision regulators, followed by temperature compensation if required via integrated heaters. Finally, sensors feed live operational data into the PLC system, which adjusts valve openings automatically to maintain target output parameters.
Maintaining Stable Output Under Variable Conditions
Fluctuations in inlet pressure, gas demand, or ambient temperature may affect downstream gas stability. Okay Energy’s PLC-based control system continuously monitors operating parameters and supports automatic regulation to maintain stable gas supply.

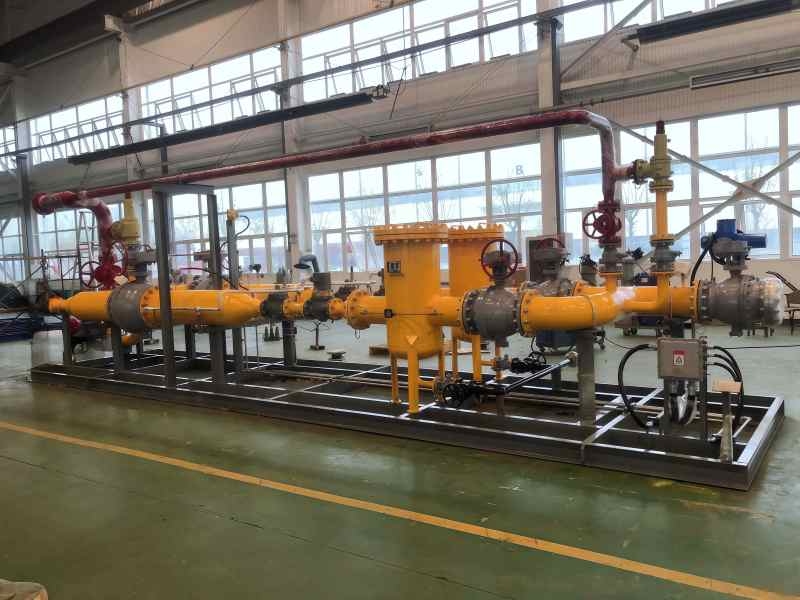

This engineering precision was proven in Malaysia’s 3500Nm³/h Natural Gas Pressure Reduction Station project where Okay Energy successfully delivered continuous operation under fluctuating load conditions.
Industrial Applications of CNG Pressure Regulation Systems
Power Generation Sector
Gas turbine and engine-based power plants rely on steady fuel supply for optimal combustion efficiency. A properly regulated skid ensures constant calorific input, helping maintain stable combustion conditions and reliable equipment operation.
Manufacturing and Processing Industries
Industries such as glassmaking, ceramics production, metallurgy, and chemicals require uniform heat profiles driven by stable natural gas flow. Okay Energy’s integrated skids help these facilities maintain consistent thermal output while reducing energy waste.
Transportation and Fueling Stations
In vehicle fueling networks or marine bunkering operations where space constraints exist, compact modular skids provide rapid installation with minimal footprint.
Advantages of Okay Energy’s Integrated Design
Skid-Mounted Structure Benefits
Skid-mounted systems combine all functional modules—filtration, regulation, metering—on a single frame, allowing plug-and-play deployment. Pre-engineered modular design cuts commissioning time by 70%. Fully integrated with gas filters, heaters, safety valves, and telemetry systems – ready to operate within 48 hours onsite.
Customization and Scalability Options
Every project demands unique specifications depending on flow rate or automation level requirements. We offer tailored configurations ranging from small-capacity skids for distributed energy systems to large-scale units.
Conclusion
CNG Pressure Regulating Skid plays an important role in modern natural gas distribution systems. Through innovation-driven engineering backed by rigorous quality assurance standards, Okay Energy delivers reliable, scalable, and engineered energy solutions that empower clients worldwide to meet evolving energy demands. Our smart CNG Pressure Reducing Device embodies efficiency through automation while guaranteeing maximum safety performance under all operating conditions.
As a professional CNG pressure regulating skid manufacturer, Okay Energy provides customized skid-mounted natural gas solutions for industrial applications worldwide—contact Okay Energy for customized CNG skid solutions tailored to your project requirements.
FAQ
Q: What is the main function of a CNG Pressure Regulating Skid?
A: It reduces high-pressure compressed natural gas to a controlled level suitable for industrial use while ensuring stable flow and safety through multi-stage regulation.
Q: What industries commonly use CNG Pressure Regulating Skids?
A: Power generation plants, manufacturing industries like glass or ceramics production lines, chemical processing facilities, transportation fueling stations, including marine bunkering units.
Q: Can Okay Energy customize a skid system based on project requirements?
A: Yes. Okay Energy offers fully customizable designs tailored to specific flow rates, outlet pressures, automation levels, and environmental conditions.
